ZN1200C Automatic Block Machine

ZN1200C is an European standard machine, strictly manufactured according to German technology and craftsmanship by China QGM. It adopts latest servo technology, has the characteristics of high performance, high configuration and high production.Can produce almost all kinds of concrete brick and cement blocks,such as hollow block, solid brick, paver & curbstone etc.

008618105956815

qgmmachinery@gmail.com

ZN1200C Automatic Block Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Features

German Design - Higher Efficiency, Lower Failure Rate;
Made in China - Lower Cost, Better service.

ZN1200C block machine adopts German technology, the leading technology for block machine in the world. German technology is known for its rigor and simplicity, paying more attention to the overall performance, efficiency, and machine quality.

ZN1200C is an automatic block making machine, designed in Germany, made in China. There are 4x7.5KW vibration motors in the bottom，2x1.1KW vibrators on top vibration, to achieve 120KN vibration force. The product height can range from 40mm to 300mm.

With SIEMENS PLC,Touch Screen, Contactors etc., control system, Italy hydraulic system, automatic mould clamping system., it is one of the most efficient & stable machine in the China. In terms of performance, efficiency, energy-saving, environmental protection, etc., it is far ahead of other block machines in the market.

Technical Parameters

Maximum Forming Area	1280×850mm
Block Height	40-300mm
Cycle Time	14~24S (depending on block type)
Servo Vibration Force	120KN
Pallet Size	1350×900×(14-45)mm
Vibration Motors in Bottom	4×7.5KW
Top Vibration Motors on Tamper Head	2×1.1KW
Control System	SIEMENS
Total Power	86.4kW（included hydraulic system）
Total Weight	17T (including facemix device)
Machine Dimension	7510L×2760W×3400H mm(including facemix device)

Technology Advantage

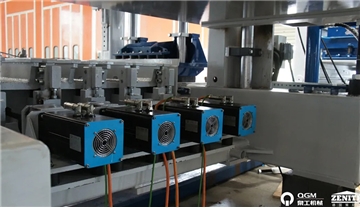

Latest Servo Vibration Technology The block machine is equipped with the newly developed servo vibration system, which can ensure the vibration motors are in a synchronized state, which can guarantee the vertical output of compaction force. Also avoid the shear stress damage of the horizontal compaction force to the machine and prolong the machine lifespan. The motor speed can reach more than 4000 rpm, which can provide bigger compaction force & the block quality would be greatly improved.

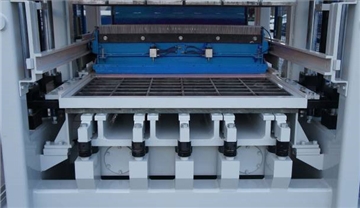

Double Vibration System Vibration table adopts high-duty Sweden HARDOX steel, consisting of dynamic table & static table, which can greatly improve the vibration efficiency. While there are another two vibrators on top, to increase compaction & guarantee the high quality of concrete blocks.

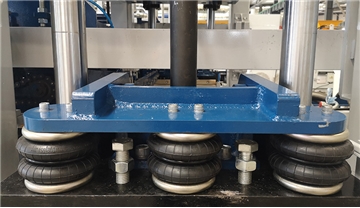

Automatic Mould Clamping System with Air Bags There are air bags on the tamper head & two side of machine. After the mold is pushed into place, the airbag of the tamper head is inflated and tightened automatically. Finally, the airbag of the mold frame is inflated to clamp the mold frame automatically. In this way, it can help to save a lot of time for changing different moulds, reduce the vibration noises & also increase production efficiency.

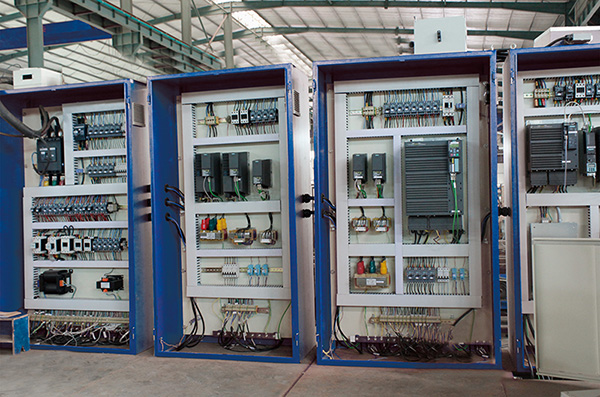

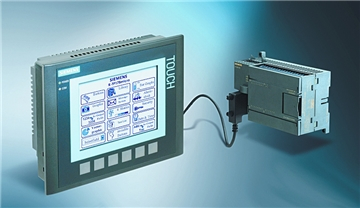

Germany SIEMENS Control System QGM control system adopts SIEMENS PLC, Touch Screen, contactors & buttons etc., which perfectly combine the automatic technology and advanced system from Germany. SIEMENS PLC has automatic trouble-shooting function for easy maintenance & also automatic-locking to avoid mechanical accidents caused by operational mistakes. While the SIEMENS touch screen can display real-time production status & achieve easy operation by visualization representation. In case any part is broken in the future, the replacement part can be sourced locally, which can save a lot of time & cost.
High-efficient hydraulic system The hydraulic motor is SIEEMSN brand, valves are Italy-brand & the hydraulic pipes are Italy-made ALFAGOMMA. Adopt double high-dynamic proportional valve and constant output pump, which can adjust the oil flow and pressure automatically, with the features of high-stability, high-efficiency and energy-saving.
Intelligent Cloud System for Remote Control QGM intelligent equipment cloud system realizes online monitoring, remote upgrade, remote fault prediction and fault self-diagnosis, equipment health status evaluation; generates equipment operation and application status reports and other functions; with the advantages of remote control & operation, quick troubleshooting & maintenance for the clients. Everything is interconnected, and the production and operation of equipment can be seen through the network in every corner of the world.
