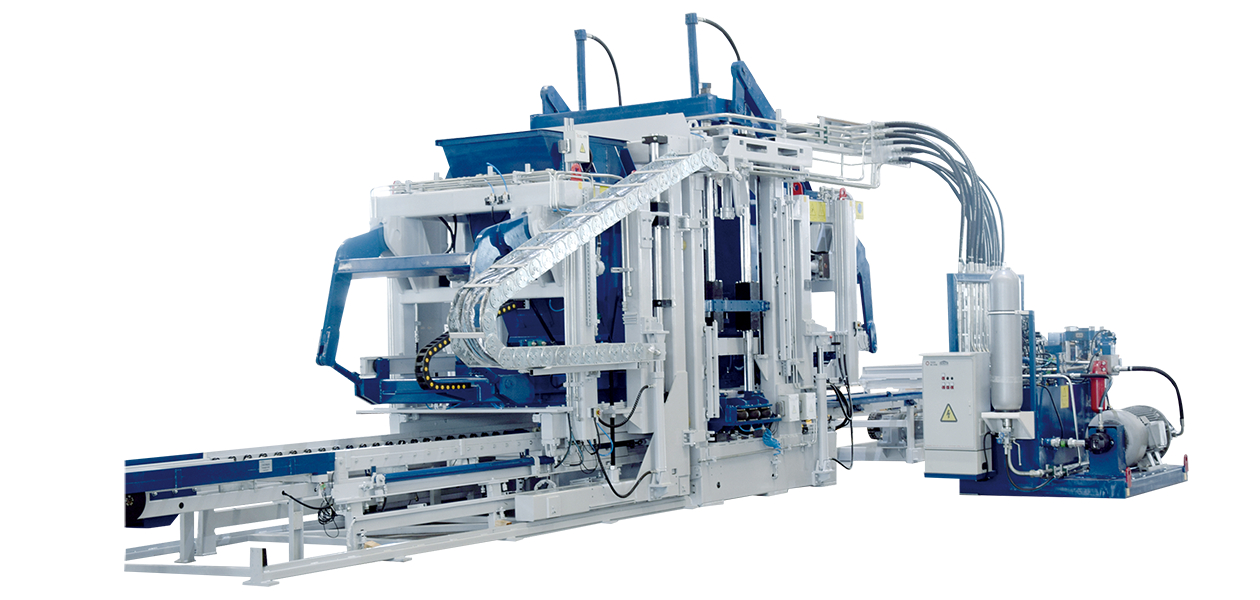

ZN1500C/1800C Concrete Block Machine
ZN1500C/1800C Concrete Block Machine
ZN1500C/1800C is a model of European standard machine, which means totally strict accordance with German production technology and craftsmanship and manufactured in China. It integrates various functions and can produce standard concrete products such as paver, curbstone and solid brick on a large scale.
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Product Features
German Design - Higher Efficiency, Lower Failure Rate;
Made in China - Lower Cost, Better service.
ZN1500C/1800C block machine adopts German technology, the leading technology for block machine in the world. German technology is known for its rigor and simplicity, paying more attention to the overall performance, efficiency, and machine quality.
ZN1500C/1800C block machines are produced in China, strictly accordingly to German technology and craftsmanship. Compared with other brand of block machines, ZN1500C/1800C machines have more stable performance, higher production efficiency and lower failure rate. In terms of performance, efficiency, energy-saving, environmental protection, etc., it is far ahead of other block machines in the market.
Technical Parameters
|
Specification |
ZN1500C |
ZN1800C |
|
Maximum forming area |
1300×1050mm |
1300×1300mm |
|
Block height |
50-500mm |
50-500mm |
|
Cycle time |
20~25s (Depending on block type) |
20~25s (Depending on block type) |
|
Vibration force |
160KN |
200KN |
|
Pallet size |
1350×1100\1200×(14-50) mm |
1400×1400mm |
|
Production per mould |
390×190×190mm(15pcs/mould) |
390×190×190mm(18pcs/mould) |
|
Bottom vibration |
4×7.5KW(SIEMENS) |
4×7.5KW(SIEMENS) |
|
Tamper head vibration |
2×1.1KW |
2×1.1KW |
|
Control system |
SIEMENS |
SIEMENS |
|
Total power |
111.3KW |
About 120KW |
|
Total weight |
18.3T(without facemix device) |
19.5T(without facemix device) |
|
25.2T(with facemix device) |
27.5T(with facemix device) |
|
|
Machine size |
10920×3250×4485mm |
11600×3250×4500 mm |
Technology Advantage
-

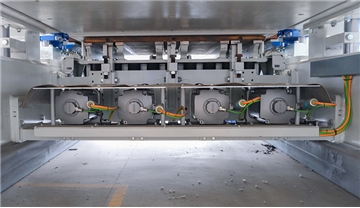

Servo vibration system The machine is equipped with the newly developed servo vibration system, which has a dense and high-excited vibration force, thus ensuring production in an efficient way, especially for large products and high-quality products, which need to be produced by pre-vibration and transitional vibration, can achieve a really nice effect.
-
Compulsory feeding The feeding system is applied with the Germany patented design, which is suitable for the use of construction waste and other special aggregates. What’s more, the discharging gate is controlled by SEW motor. The feeding frame, bottom plate & mixing blades are made of high-duty Sweden HARDOX steel, which strengthen the sealing performance and prevent the material leakage to guarantee the long service life, feeding uniform for the improved product quality.
-

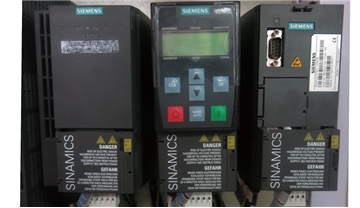

SIEMENS frequency conversional control SIEMENS Frequency conversional technology was re-innovated and improved by Germany R&D center. The main machine vibration adopts low frequency standby, high frequency operation, which improve the running speed and product quality. At the same time, it reduces the impact on the mechanical parts and the motor, prolongs the life of the machine and the motor, and saves about 20%-30% of electricity compared with the traditional motor operation control.
-

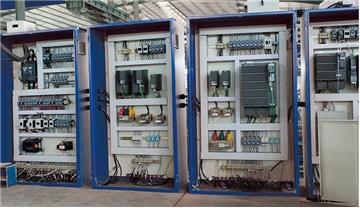

Fully-automatic control Perfectly combine the automation technology and system from Germany. The automatic control is of easy operation, low failure ratio and high reliability. At the same time, it has the functions of product formula management and operation data collection.
-

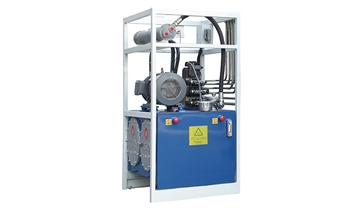

High-efficient hydraulic system The hydraulic pump & valve are from international brand, which adopt high dynamic proportional valve and constant output pump to adjust the speed & pressure, with the features of high-stability, high efficiency and energy-saving.
-

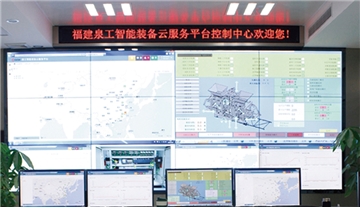

Intelligent Cloud System QGM intelligent equipment cloud system realizes online monitoring, remote upgrade, remote fault prediction and fault self-diagnosis, equipment health status evaluation; generates equipment operation and application status reports and other functions; with the advantages of remote control & operation, quick troubleshooting & maintenance for the clients. Everything is interconnected, and the production and operation of equipment can be seen through the network in every corner of the world.
Corollary Equipment
-

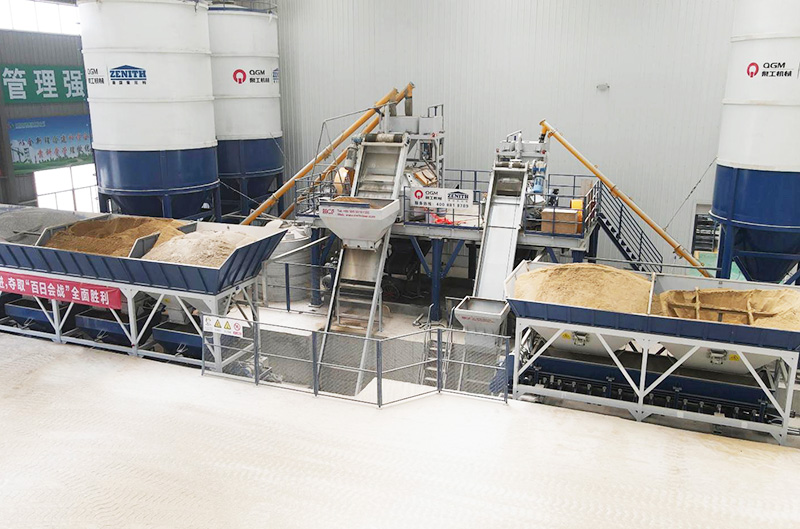

Batcher
-

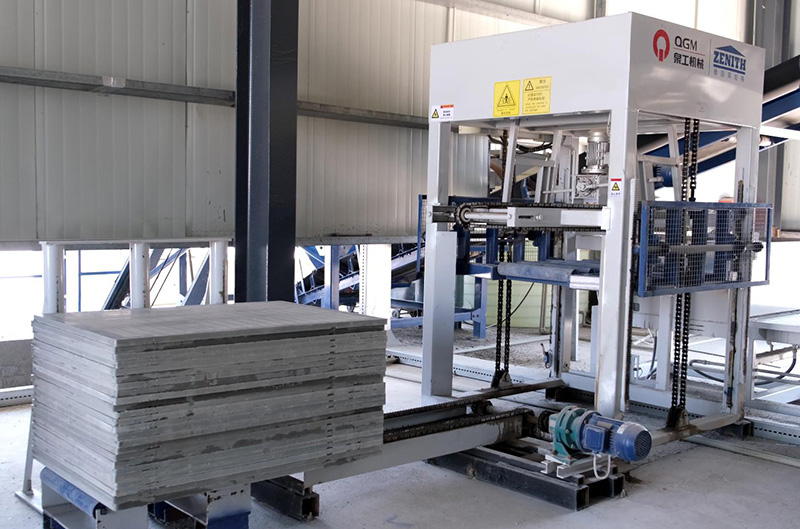

Automatic pallet feeder
-
Moisture sensor
-

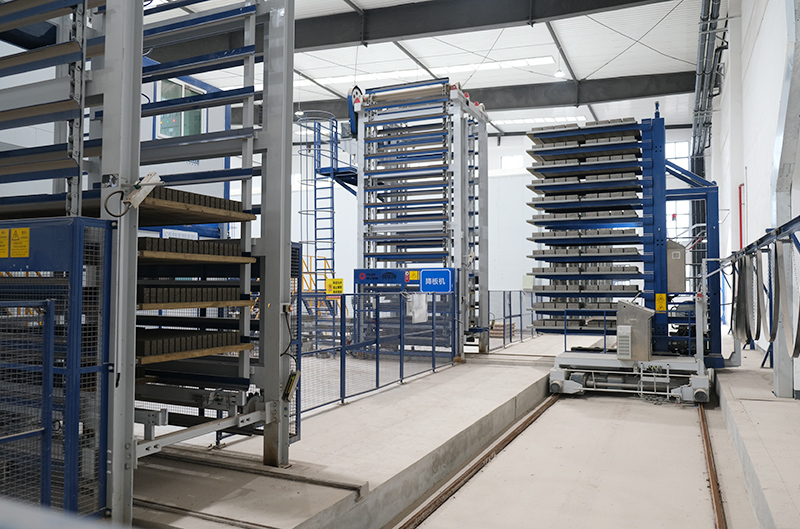

Finger car
-
Block-Pallet separator
-

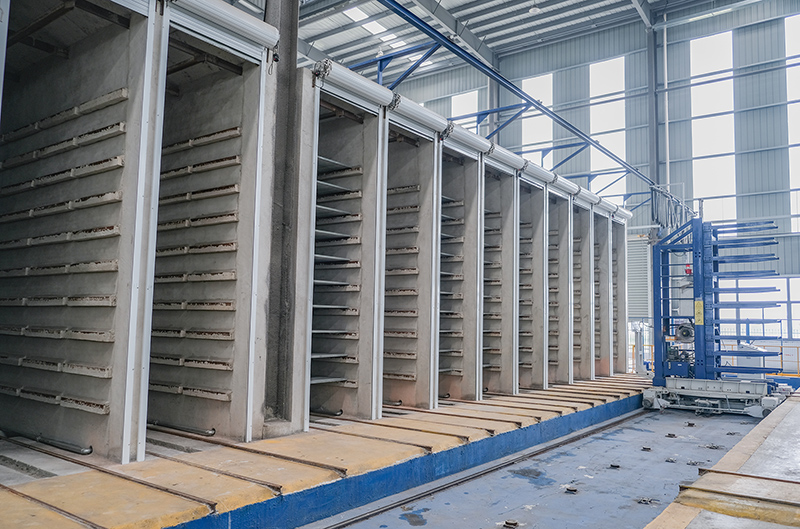

Curing chamber
-

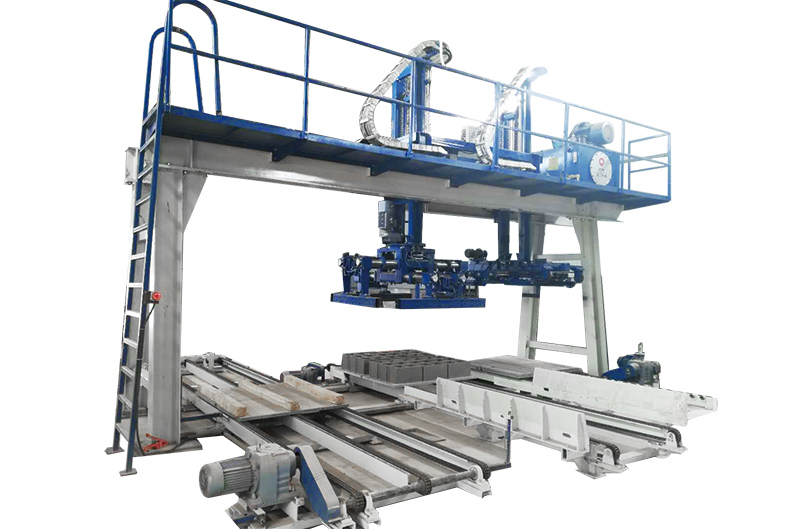

Block-pushing cuber
