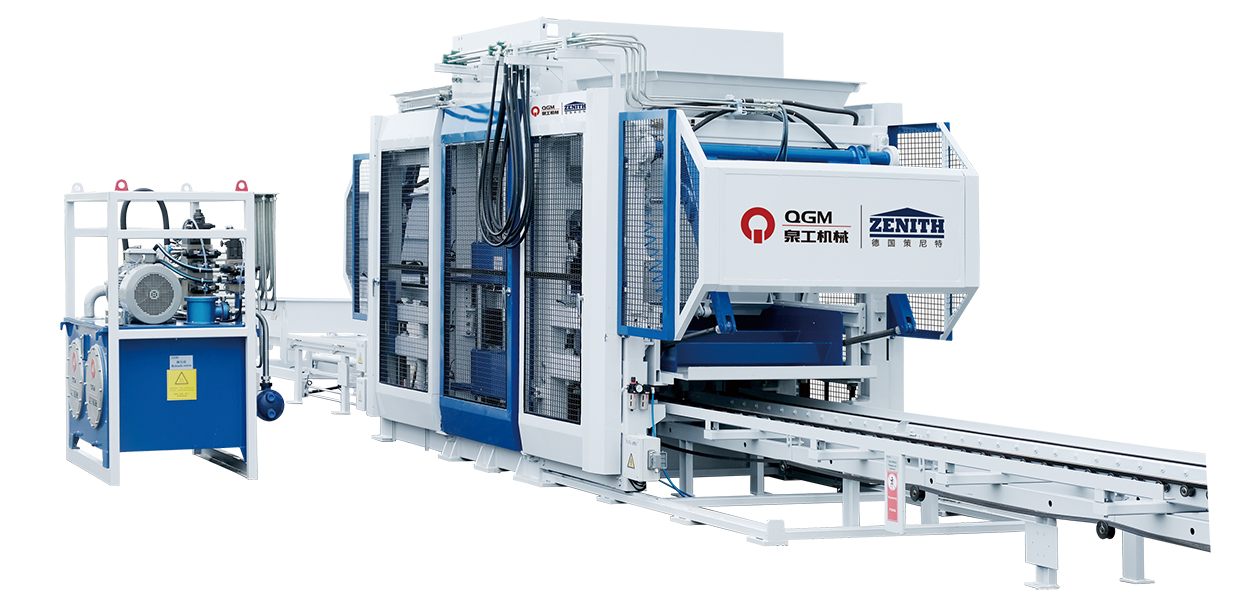

ZN1200S Concrete Block Machine
ZN1200S Concrete Block Machine
ZN1200S is an European standard machine，which means totally strict accordance with German production technology and craftsmanship and manufactured in China. With the characteristics of rapid production, high quality products and diversified production. It can easily produce high-quality paver, curbstone and garden landscape products etc.
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Product Features
German Design - Higher Efficiency, Lower Failure Rate;
Made in China - Lower Cost, Better service.。
ZN1200S block machine adopts German technology, the leading technology for block machine in the world. German technology is known for its rigor and simplicity, paying more attention to the overall performance, efficiency, and machine quality.
ZN1200S block machines are produced in China, strictly accordingly to German technology and craftsmanship. Compared with other brand of block machines, ZN1200S machines have more stable performance, higher production efficiency and lower failure rate. In terms of performance, efficiency, energy-saving, environmental protection, etc., it is far ahead of other block machines in the market.
Technical Parameters
|
Maximum Forming Are |
1100×1080mm |
|
Block Height |
40-300mm |
|
Cycle Time |
18~25s (depending on block types) |
|
Pallet Size |
1200×1150mm |
|
Production per Mould |
390×190×190（12pcs/mould） |
|
Bottom Vibration |
2×15KW Two-axis Dynamic + Static Vibration Table |
|
Tamper Head Vibration |
2×0.55KW |
|
Control System |
SIEMENS |
|
Total Power |
70.35KW |
|
Total Weight |
Main Machine:14.98T With facemix device: 18.49T |
Technology Advantage
-

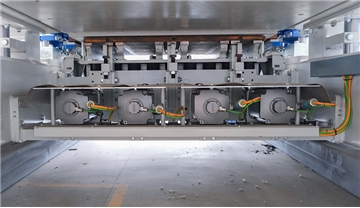

Servo vibration system The machine is equipped with the newly developed servo vibration system, which has a dense and high-excited vibration force, thus ensuring production in an efficient way, especially for large products and high-quality products, which need to be produced by pre-vibration and transitional vibration, can achieve a really nice effect.
-

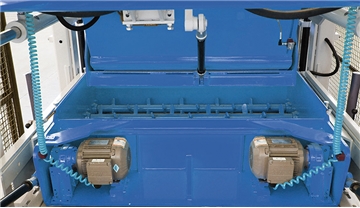

Compulsory feeding The feeding system is applied with the Germany patented design, which is suitable for the use of construction waste and other special aggregates. What’s more, the discharging gate is controlled by SEW motor. The feeding frame, bottom plate & mixing blades are made of high-duty Sweden HARDOX steel, which strengthen the sealing performance and prevent the material leakage to guarantee the long service life, feeding uniform for the improved product quality.
-

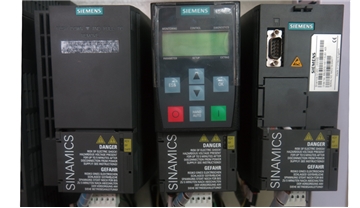

Germany SIEMENS Frequency Vibration Technology QGM SIEMENS frequency conversional technology was re-innovated and improved by Germany R&D center. The block making vibration adopts low frequency standby, high frequency operation, which improve the running speed and product quality. At the same time, it reduces the impact on the mechanical parts and motor, prolongs the machine and motor lifespan, saving about 20%-30% of electricity when compared with the traditional motor.
-

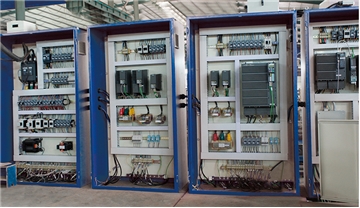

Fully-automatic control Perfectly combine the automation technology and system from Germany. The automatic control is of easy operation, low failure ratio and high reliability. At the same time, it has the functions of product formula management and operation data collection.
-
High-efficient hydraulic system The hydraulic pump & valve are from international brand, which adopt high dynamic proportional valve and constant output pump to adjust the speed & pressure, with the features of high-stability, high efficiency and energy-saving.
-
Intelligent Cloud System QGM intelligent equipment cloud system realizes online monitoring, remote upgrade, remote fault prediction and fault self-diagnosis, equipment health status evaluation; generates equipment operation and application status reports and other functions; with the advantages of remote control & operation, quick troubleshooting & maintenance for the clients. Everything is interconnected, and the production and operation of equipment can be seen through the network in every corner of the world.
Corollary Equipment
-
Batcher
-
Automatic pallet feeder
-
Moisture sensor
-
Finger car
-
Block-Pallet separator
-
Curing chamber
-
Block-pushing cuber
