Zenith 844SC Paver Block Machine

Zenith 844SC Paver Block Machine

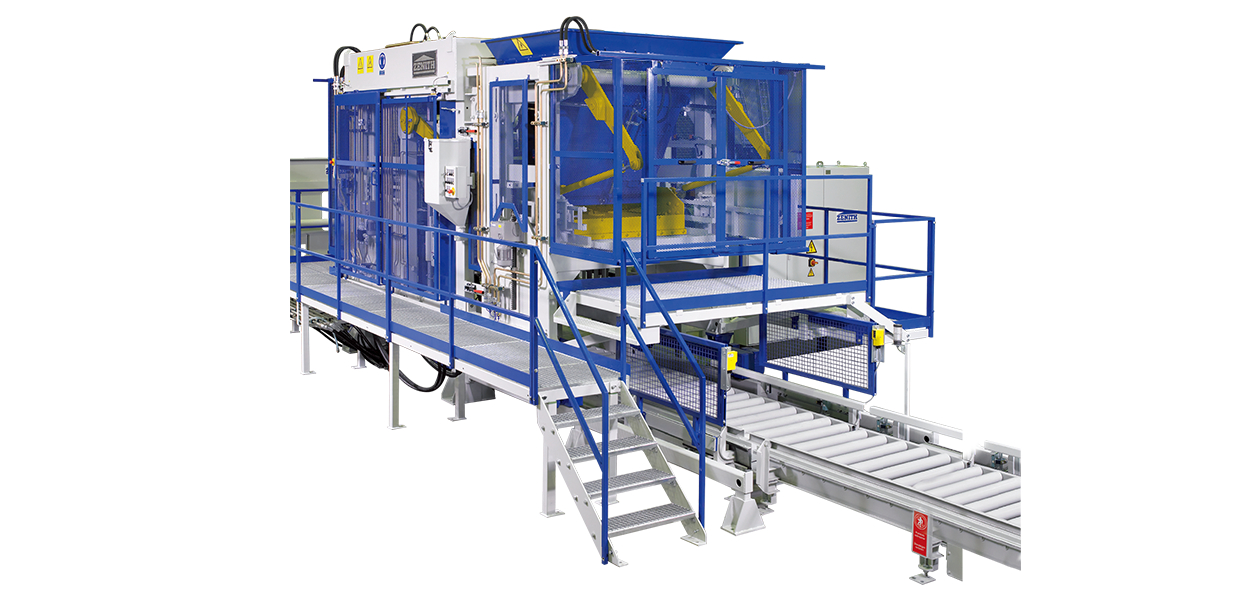

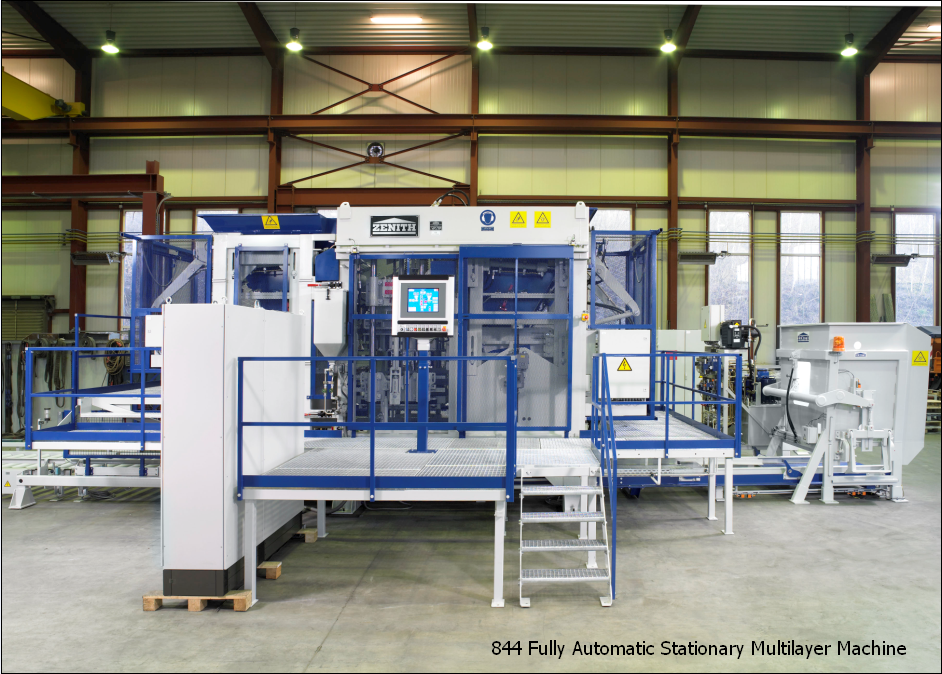

Germany Zenith 844SC is a fully automatic stationary block machine,unique multilayer production for pavers/interlocks. Designed for products ranging from 50mm to 500mm height. When production is focused on interlocks/pavers/paving stones, ZENITH 844 is far superior to single pallet plants, concerning the price-performance ratio, duration of installation and simplified handling.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Features

Zenith 844 is an outstanding representative of the multilayer block production equipment for concrete paver, interlock and similar products in the world. It has the advantages of high performance, high output, high quality and high cost efficiency. As the research result of advanced technology of Zenith Company for decades, Zenith 844 adopts many latest technologies,such as visual menu navigation, which has the characteristics of simple operation and low maintenance cost.

Zenith 844 adopts a modular production system, and all processes from raw materials to finished products (direct handling) can be fully automatic.This machine is specially designed to produce concrete products with 50mm to 500mm heights, and can easily produce high-quality interlock/paver, curbstone and other cement block products. Compared with the single pallet machine, the palletizing of Zenith 844 finished products meets the requirements of direct transportation, which is easier in installation, operation and transportation, greatly saves time,labor and material costs, and has superior performance.

Technical Parameters

Machine Parameters

Product Height

Max

500 mm

Min.

50 mm

Max. Cube Height

640 mm

Max. production Area

1240x1000 mm

Pallet Size (standard)

1270x1050x125 mm

Base-mix Hopper Volume

About 2100 L

Machine Weight

With face-mix Device

About 16 T

Conveying device, operating platform, hydraulic station, pallet bin, etc.

About 9 T

Machine Dimensions

Max. Total Length

6200mm

Max. Total Height

3000mm

Max. Total Width

2470mm

Machine Technical Parameters/ Consumption

Upper Vibration

Max35KN

Total Hydraulic Flow

83L/min

Working Pressure

SC180bar

Maximum Power

Standard 50KW 66KW

Control System

Siemens S7-1500(CPU317)SC

Layout of Germany Zenith 844SC Concrete Block Production Line
      • 1Cement Silo
      • 24-bins Batcher for Main Material
      • 32-bins Batcher for Facemix
      • 4Mixer for Main Material (Planetary)
      • 5Mixer for Facemix (Planetary)
      • 6Belt Conveyor
      • 7Fully-automatic Concrete Block Making Machine
      • 8Forklift
      • 9Loader
      • 10Material Stocking Area
      • 11Finished Product Area
      • 12Four-sides Block Clamp
Corollary Equipment
  • Concrete Batching Plant

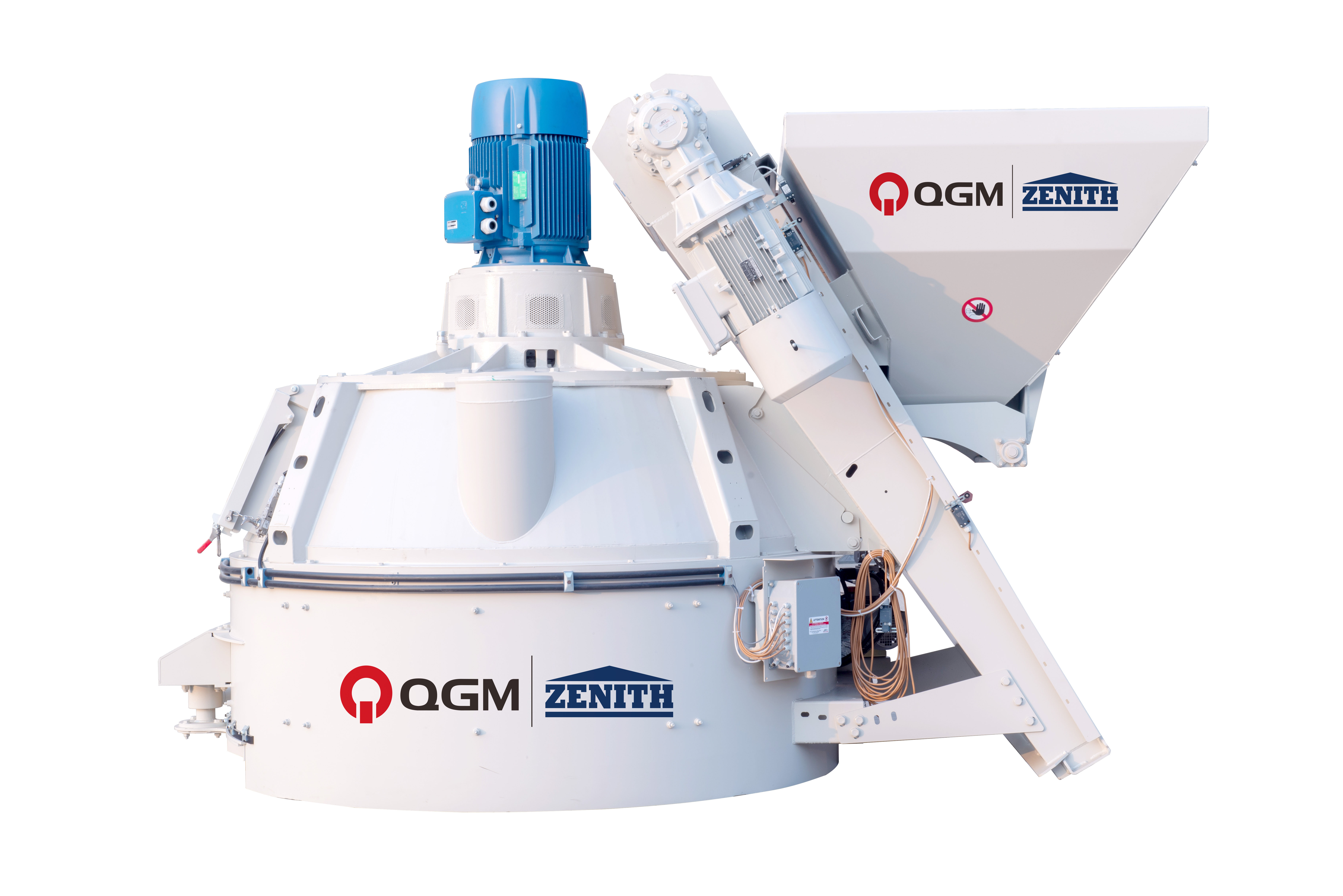

  • Concrete Mixer (Planetary)
  • Moisture sensor
  • Zenith 844 Block Machine
  • 844 Mold
  • Block Clamp
